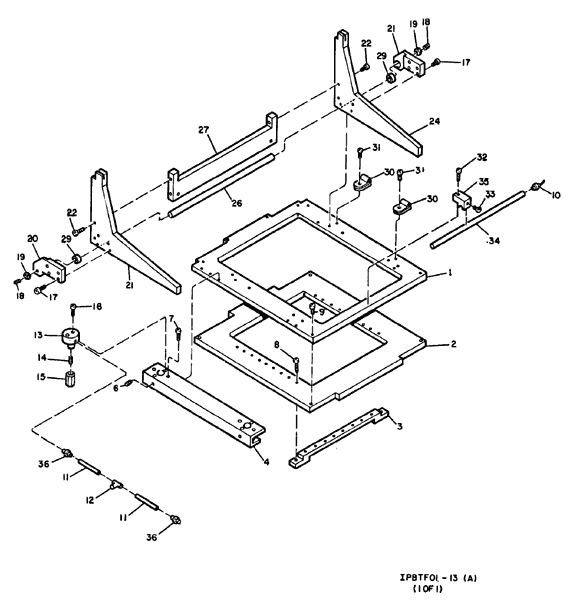

TILT ARM ASSEMBLY
IPBTF01-13

KEY NO. PART NO. DESCRIPTION QTY.

1 1T22 ADAPTER MTG PLATE 1

2 1T25 ADAPTER PLATE 1

3 1T21 SCREEN MTG RAIL 2

4 1T23 ADAPTER PLATE SUPPORT 2

6 1/4-20 X 1/4" SS 2

7 10-32 X 3/8" SHCS 6

8 1/4-20 X 1/2" SHCS 4

10 P0020 BARB FITTING 1

11 P0961 TUBING,POLYURE.,1/16X1/8 BLACK

12 P0718 FITTING,TEE,T2,#2 BARB 3

13 P0783 CYLINDER,PANCAKE 4

14 10-32 X 5/8" SS 4

15 1T24 CYLINDER LOCK EXT. 4

16 6-32 X 1" SHCS 8

17 10-32 X 3/4" SHCS 8

18 10-32 X 3/8" SS 2

19 #10 JAM NUT 2

20 1T04-P2 LEFT TITL SUPPORT 1

21 1T04-P1 RIGHT TILT SUPPORT 1

22 10-32 X 3/4" SHCS 4

23 1T01-P2 LEFT TILT ARM 1

24 1T01-P1 RIGHT TILT ARM 1

26 P0476 SHAFT,GROUND 1/2x12.50 1

27 1T03 TILT ARM CROSS MEMBER 1

29 P0028 BEARING,RADIAL 2

30 3/16" CLIP 1

31 6-32 X 3/8" PHS 1

32 10-32 X 7/8" SHCS 1

33 8-32 X 3/8" SHCS 1

34 1T10 BLOW OFF TUBE ASSY. 1

35 1T09 HOLDER,BLOW OFF TUBE 1

36 P0005 FITTING,BARB 4
